Motorsport Alignment Turntables

SOLD AS A PAIR

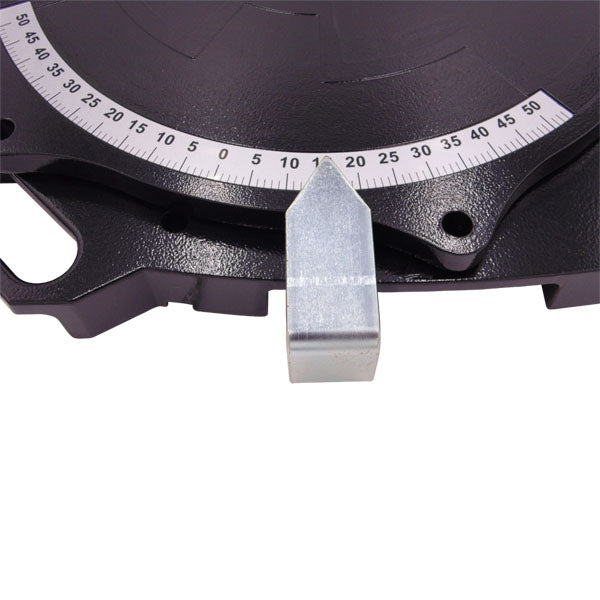

To measure caster angle accurately, the wheels need to be rotated 15–20 degrees in either direction. While this can be done using a straight edge and chalk marks, a more professional method is to place the wheels on graduated turntables.

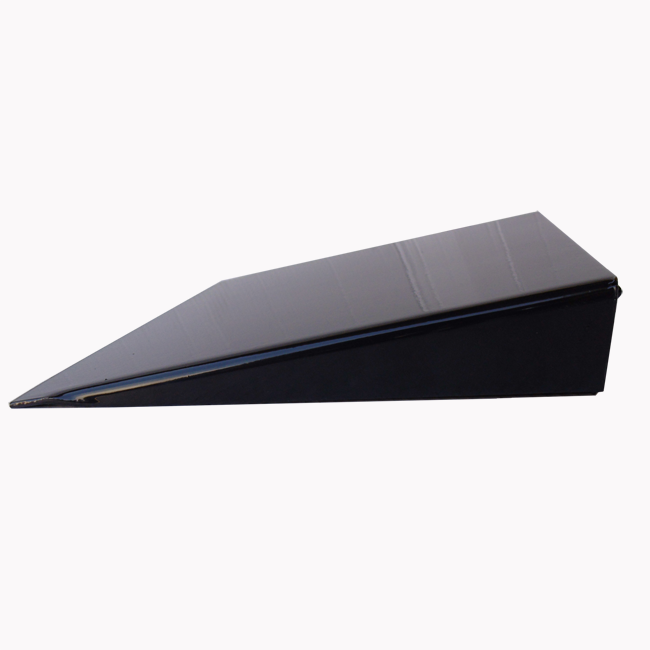

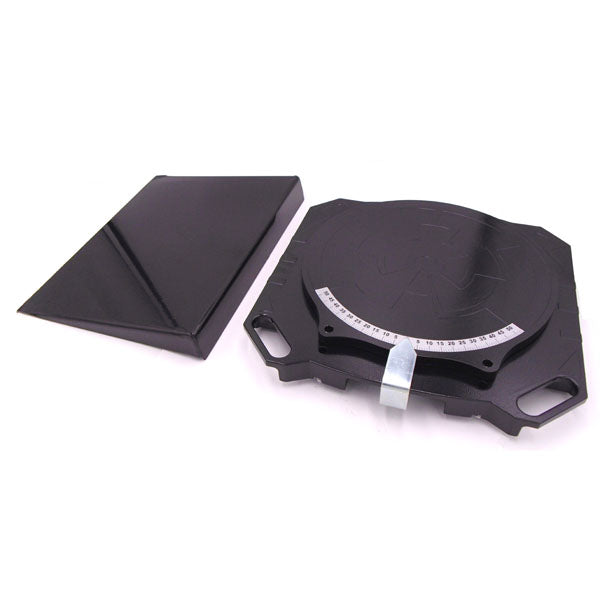

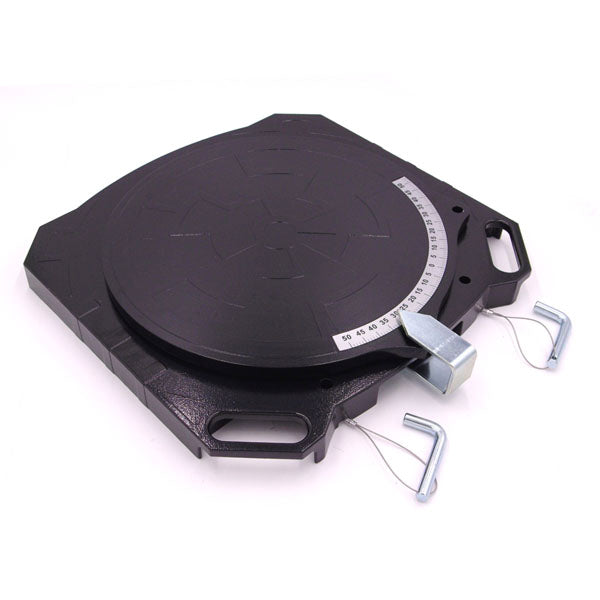

These lightweight aluminium turntables are ideal for use in a fixed garage or workshop, by mobile mechanics, or by race teams. Each turntable features two carry handles and a run-up ramp for easy positioning. They can support up to 2 tons each (4 tons combined) and come with an instruction sheet complete with diagrams. Please note that additional equipment may be required—see our other products for suitable accessories.

Specifications:

• Capacity: 2 tons per turntable (4 tons combined)

• Table Diameter: 335 mm

• Base Width: 385 mm

• Base Width (with pointer): 425 mm

• Base Length: 385 mm

• Ramp Width: 390 mm

• Ramp Length: 300 mm

• Ramp Height: 45 mm

• Total Height: 47 mm

• Total Weight: 17.5 kg per pair (including ramps)
